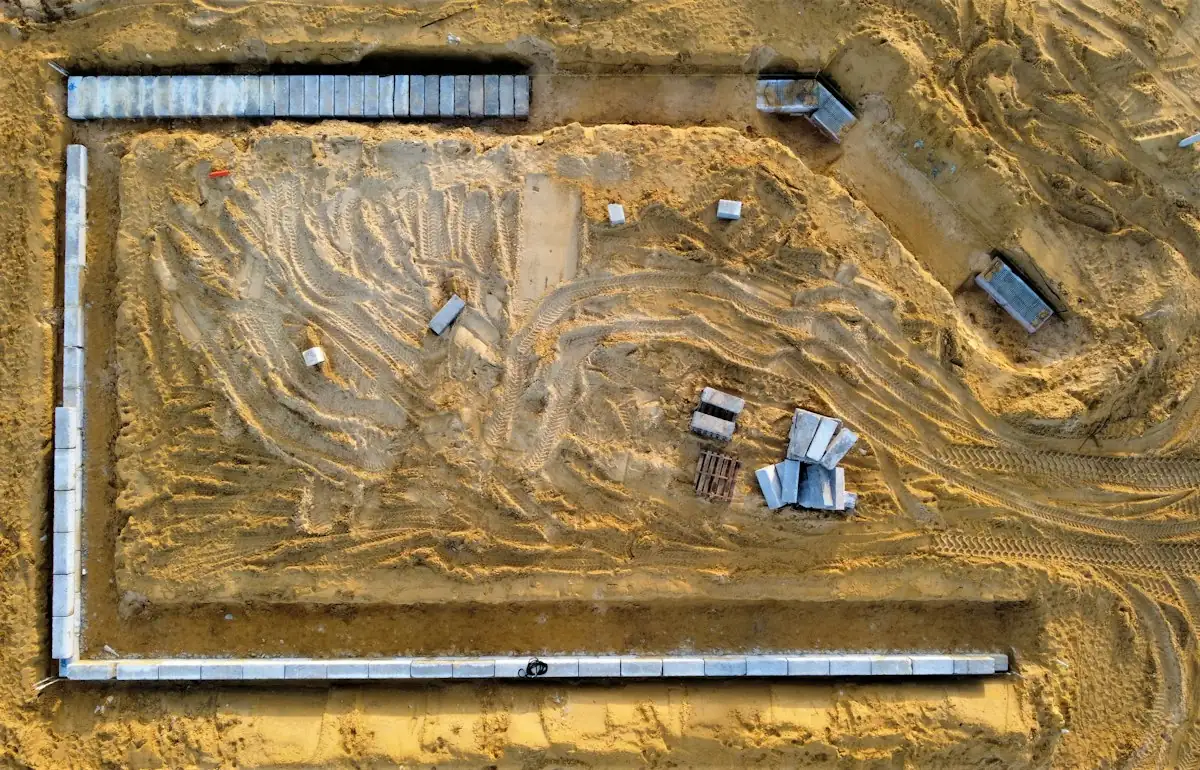

An aerial view of a construction site in the desert (stock photo)

2 men walking on wooden bridge (stock photo)

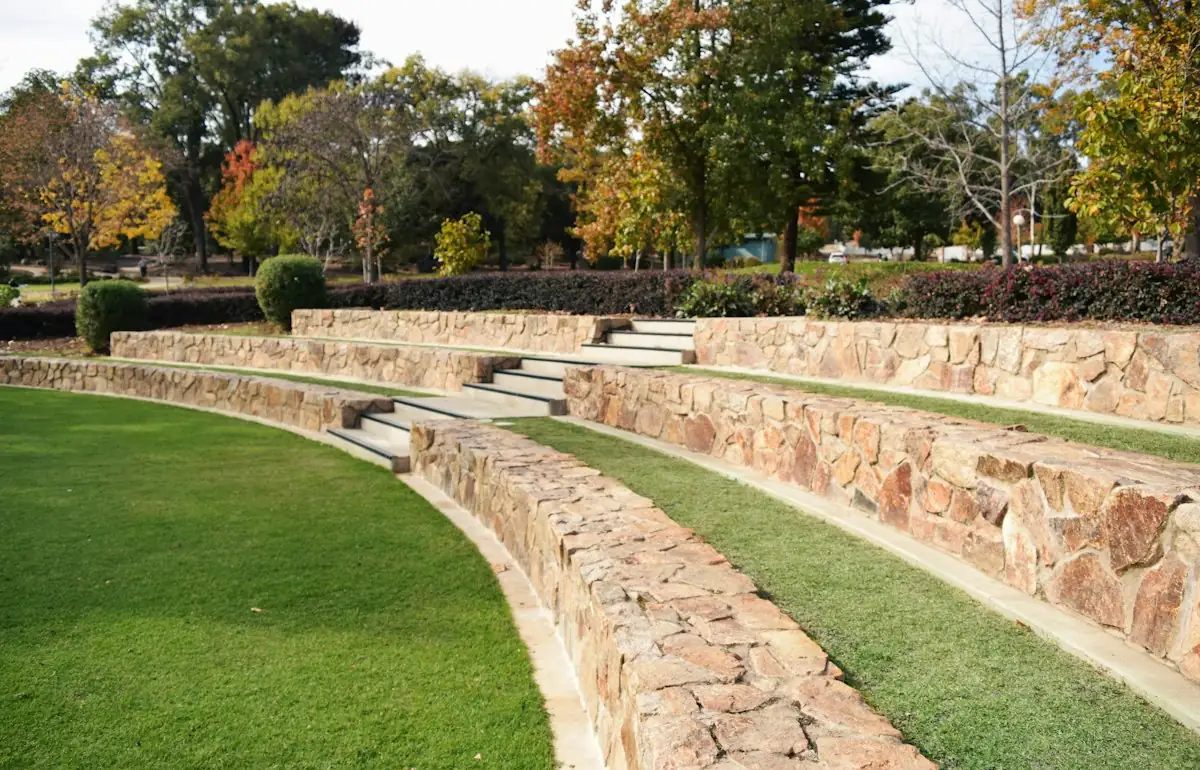

A row of stone steps sitting on top of a lush green field (stock photo)

Illustrative stock photography, not ISTA project photos. Photos: Iain, Abdul Zreika, Ch Photography on Unsplash.

Under the International Building Code, a retaining wall needs an engineer’s stamp once it retains 4 feet or more of soil, or just 2 feet if it supports a surcharge load, like a driveway, patio, or structure above it. ISTA Engineers provides PE-stamped retaining wall design services across Colorado, from Front Range clay soils to steep mountain hillsides.

A retaining wall does real structural work, holding back soil that wants to move, sometimes with a driveway, patio, or building’s weight pressing down on top of it. ISTA Engineers’ retaining wall design service covers the engineering behind that: soil analysis, wall type selection, drainage design, and the structural calculations that keep a wall standing for decades instead of failing within a few years.

Our engineers design PE-stamped retaining walls for residential, commercial, and government properties across Colorado, from a simple garden wall upgrade to engineered walls supporting driveways, foundations, or steep hillside lots. This page covers what our retaining wall design service includes, how our engineers approach Colorado’s soil and slope conditions, and what to expect from the process, from initial site visit to permit-ready plans.

When You Need an Engineer

Retaining wall design requires an engineer under the International Building Code once the wall retains 4 feet of soil or more. The threshold drops to 2 feet when a surcharge load sits above the wall, such as a driveway, patio, parking area, or structure. Many Colorado jurisdictions adopt these thresholds directly, though local amendments vary. ISTA Engineers confirms the exact requirement for your address before design begins.

An engineered wall often separates a wall that lasts from one that leans, bulges, or fails within a few seasons. Colorado’s expansive soils and sloped mountain lots raise that risk. Building without an engineer’s stamp also risks a failed inspection, a stop-work order, or a rebuild once a permit reviewer flags the wall.

What’s Included

A retaining wall design package from ISTA Engineers includes:

Soil analysis — understanding the soil pressure and bearing conditions the wall has to resist.
Wall type selection — gravity, cantilever, segmental, or gabion, based on your site, height, and budget.
Surcharge load analysis — accounting for any driveway, patio, or structure above the wall.
Drainage design — weep holes, gravel backfill, and drainage that prevents hydrostatic pressure buildup, the leading cause of wall failure.
Structural calculations — sizing for overturning, sliding, and bearing capacity.
PE-stamped drawings — a permit-ready set sealed by a Colorado-licensed Professional Engineer.

Each retaining wall design documents reinforcement details, footing dimensions, and backfill requirements. The contractor receives a clear, buildable set of instructions rather than a generic template. Projects that extend, modify, or add load to an existing wall can include that assessment in the same design package from ISTA Engineers.

Wall Types We Design

Cantilever Concrete Walls

Cantilever walls use reinforced concrete and a wide footing to resist overturning through leverage. This type suits taller walls and sites with significant surcharge load.

Segmental Block Walls

Segmental block walls use interlocking concrete units reinforced with geogrid that extends back into the soil. This common, cost-effective type suits mid-height residential walls.

Gravity Walls

Gravity walls rely on their own mass to resist soil pressure. Engineers typically use this type for shorter walls where a simpler system is appropriate.

Gabion Walls

Gabion walls use rock-filled wire baskets that combine strength with natural drainage. Designers often choose this type for hillside or drainage-sensitive sites.

ISTA Engineers selects the wall type that fits your soil, height, and budget rather than defaulting to one system. Some sites call for a straightforward engineered segmental wall. Others need the added capacity of a cantilever wall or the drainage advantages of gabion construction. The engineer makes that determination on-site, not from a catalog.

How Does Retaining Wall Design Handle Colorado Soil and Slope?

Front Range clay soils expand and contract with moisture changes, which affects wall design and drainage requirements. A retaining wall designed without accounting for expansive soil can develop pressure well beyond standard assumptions. That pressure leads to premature cracking or movement. ISTA Engineers also accounts for frost depth in every footing design. Footings placed above the local frost line suffer frost heave, which can crack a wall or push it out of alignment over successive winters.

Steep slopes in mountain communities add global stability considerations. The wall itself might be structurally sound, but the engineer must also evaluate the slope behind it for a deeper slip surface forming behind the reinforced zone. ISTA Engineers accounts for soil type, frost depth, and slope stability in every retaining wall design, wherever in Colorado the project sits.

Local jurisdictions across Colorado apply their own amendments to IBC retaining wall thresholds, setback requirements, and drainage discharge rules. ISTA Engineers verifies the applicable code requirements for your municipality or county during the design process. The stamped plans are then built to pass review rather than requiring revisions after submittal.

Our Process

Site visit — the engineer assesses the slope, existing soil conditions, and any surcharge loads.
Wall type & drainage design — the engineer selects the system that fits your site and budget.
Structural calculations & stamped plans — calculations size the wall for overturning, sliding, and bearing capacity, ready for permit.

ISTA Engineers coordinates directly with homeowners, contractors, and project owners throughout retaining wall design. The firm keeps the design aligned with the construction schedule and budget. After the plans are stamped, the engineers answer contractor questions during construction. They also address comments that return from the permitting authority.

ISTA Engineers publishes two resources on wall performance. The retaining wall design guide explains core design principles. The article on 7 warning signs of retaining wall failure helps owners spot problems in an existing wall.

What Retaining Wall Design Costs

Engineering fees for a custom retaining wall design commonly range from about $2,000 to $5,000. Wall height, length, site access, and soil complexity drive the fee. Construction cost is separate and rises sharply with height, because soil pressure grows quickly on taller walls. Simple sites with straightforward soil cost less to engineer. Steep slopes, difficult access, or unusual surcharge conditions raise the fee.

Why Choose ISTA

Colorado-licensed Professional Engineers experienced with Front Range and mountain soil conditions.
Certified WBENC, WOSB, MWBE, and DBE — a women-owned, minority-owned firm.
Permit-focused plans designed to clear review the first time.
Site-specific engineering rather than generic templates, accounting for the soil, slope, and surcharge conditions unique to your property.
Direct engineer access from initial site visit through construction, for questions that come up along the way.

Retaining Wall Design FAQ

Do I need an engineer for my retaining wall?

An engineer is required for a retaining wall once it retains 4 feet of soil or more under the International Building Code. The threshold drops to 2 feet when the wall supports a surcharge load, such as a driveway or structure above it. Local amendments vary, so ISTA Engineers confirms the exact rule for your jurisdiction.

What counts as a surcharge load?

A surcharge load is any additional weight above or behind a wall that adds to the soil pressure the wall must resist. Common examples include a driveway, a patio, a parking area, and a building foundation.

What type of retaining wall is best for my property?

The best retaining wall type for a property depends on soil, wall height, budget, and site access. ISTA Engineers assesses the site and recommends a cantilever, segmental, gravity, or gabion wall. The recommendation reflects which option actually fits the conditions.

Why does drainage matter so much for retaining walls?

Drainage matters for retaining walls because poor drainage is the leading cause of wall failure. Trapped water creates hydrostatic pressure that the wall was not designed to resist. That pressure leads to bulging, cracking, or collapse.

How much does retaining wall design cost?

Retaining wall design cost typically runs about $2,000 to $5,000 in engineering fees for a custom wall. Wall height, wall length, and site complexity determine where a project falls within that range. Construction cost is a separate expense.

Do you design walls for sloped or hillside lots?

ISTA Engineers designs retaining walls for sloped and hillside lots. The firm regularly works on hillside properties, including Colorado’s mountain communities. Slope stability is a key consideration on these sites, and the engineer addresses it in the design.

Can you design a replacement for an existing, failing retaining wall?

ISTA Engineers designs replacements for existing, failing retaining walls. The engineer evaluates walls that show leaning, cracking, or bulging. The firm then designs an engineered replacement or reinforcement solution. The design is sized for the actual soil and surcharge conditions on site.

How long does retaining wall design take?

Retaining wall design timelines vary with wall complexity and jurisdiction requirements. Most design packages move from site visit to stamped, permit-ready plans within a few weeks. Projects with unusual slope conditions or larger surcharge loads may require additional analysis time.

Do you work directly with my contractor or landscaper?

ISTA Engineers works directly with your contractor or landscaper on the wall. The firm coordinates with the building crew during design and after the plans are stamped. The engineer answers buildability questions and addresses any permit review comments.

Start Your Retaining Wall Project

ISTA Engineers recommends the right wall type after reviewing your slope and site. The engineers then provide PE-stamped, permit-ready plans. Request a consultation or call (720) 740-4060.

ISTA Engineers explains who builds and who designs a wall in its breakdown of retaining wall contractor vs. engineer. Read the article to understand the difference between a contractor and a licensed engineer before you hire.
